Solenoid Valve vs Pneumatic Valve: Actuation Differences and Selection Guide

Solenoid valves are driven directly by an electromagnetic coil — fast, compact, easy to integrate. Pneumatic valves are driven by compressed air — high force, inherently explosion-proof, capable of holding position on power loss. Choosing between them is a trade-off between electric and air actuation.

What Is a Solenoid Valve

A solenoid valve is a control valve actuated by an electromagnetic coil. Energize the coil and the magnetic field pulls the plunger, which lifts or presses the seal (diaphragm, piston, or spool) to open or close the flow path; de-energize and the return spring pushes the seal back. Its core job is to turn an electrical signal into a fast on/off action.

The common types you’ll choose between:

• By port count (ways): 2-way (simple on/off), 3-way (diverting or mixing flow paths), 4-way (controls double-acting cylinders).

• By actuation: direct-acting (coil drives the spool directly, fastest response, suited to small bore and low pressure), pilot-operated (opens a small pilot port first, uses media pressure to drive the main spool, suited to large bore and high pressure).

What Is a Pneumatic Valve

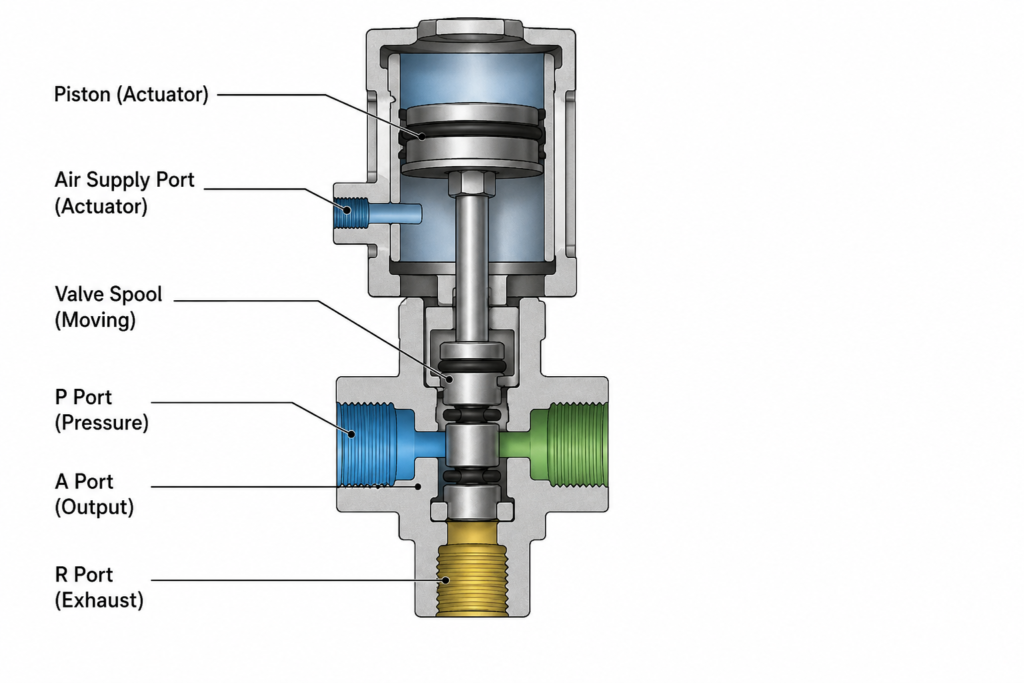

A pneumatic valve is a control valve actuated by compressed air pressure. The air pushes a piston or diaphragm in a cylinder, which moves the spool. The fundamental difference from a solenoid valve is the energy source: one uses electricity, the other uses air. Pneumatic valves are commonly used to control air circuits or large-bore flow paths, and in applications that need high driving force.

Common types:

• Directional control valves: classified by positions/ports — 2-position 2-port, 2-position 3-port, 2-position 5-port, etc. — to open/close and redirect air circuits; the most common type in pneumatic systems.
• By actuation: air-piloted (driven by another air signal), electrically piloted (a small solenoid pilot controls the air circuit — the “solenoid-piloted pneumatic valve,” covered in the integration section below), or manual.

Key Differences at a Glance

Key Differences in Detail

Response Speed and Cycle Frequency

A solenoid valve drives the plunger directly via the coil, responding in milliseconds — well suited to high-frequency cycling. Fuel injectors and fast-dosing applications can actuate thousands of times per minute without issue. Pneumatic valves aren’t slow, but they have to fill and exhaust the cylinder first, and response is limited by line length and chamber volume: the longer the air path and the larger the cylinder, the longer the fill/exhaust time, so they can’t match a solenoid valve in high-frequency duty.

Force, Pressure, and Scalability

A solenoid valve’s driving force is bounded by coil size and heating — to scale up bore or pressure you need a bigger coil, and continuous energization generates heat, so solenoid valves are mainly used for small-to-medium bore and low-to-medium pressure. A pneumatic valve’s strength is scalable force: increase the cylinder diameter or raise the air pressure and the driving capability rises proportionally, making it suited to large bore, high pressure, and heavy loads without being constrained by coil heating.

Power Infrastructure and Installation

A solenoid valve is self-contained — connect power and piping and it runs, with a small footprint and simple wiring. A pneumatic valve depends on a full air-supply infrastructure: compressor, filter, regulator, receiver, fittings — a heavier, larger system with higher upfront and maintenance costs. If your site has no existing air supply, installing a compressor system just for pneumatic valves rarely pays off.

Hazardous-Area Safety

A solenoid valve uses electricity at the valve location, creating a spark risk; to enter flammable or explosive areas you must select an explosion-proof certified model (which is more expensive and limits your options). A pneumatic valve’s field end is entirely air-driven — no spark, inherently explosion-proof — making it the safer choice in chemical, oil-and-gas, and dusty environments, and saving the cost of explosion-proof certification.

Control Integration and Fail-Safe Behavior

A solenoid valve interfaces directly with a PLC, microcontroller, or relay — the simplest path to electronic control, ideal when you need remote or precise electrical control. A pneumatic valve usually needs a pilot interface (most often a solenoid pilot valve), adding one integration layer. On power loss, a solenoid valve typically returns to its spring position (open or closed); a pneumatic valve can be designed to hold position on air or power loss (fail-safe or stay-put), which is critical in certain process-safety scenarios.

Pros and Cons

Solenoid Valve

Pros: Extremely fast response, compact footprint, low power draw at small sizes, direct electronic-control integration.

Cons: Force-limited at large bore / high pressure, heat generation under continuous energization (duty cycle must be right), higher cost at large bore, explosion-proof certification required for hazardous areas.

Pneumatic Valve

Pros: High and scalable force, inherently explosion-proof (suited to hazardous environments), can hold position on power loss, durable and reliable.

Cons: Depends on air-supply infrastructure (heavy system, large footprint), high upfront and maintenance cost, slightly slower than a direct-acting solenoid valve.

How to Choose: by Scenario

• Solenoid valve: small-to-medium bore, low-to-medium pressure, high-frequency cycling, power available on site, need for electronic or remote control.
• Pneumatic valve: large bore, high pressure, heavy loads, hazardous / explosion-proof areas, need to hold position on power loss, existing air supply on site.
• Integrated solution: when you need both electronic-control precision and the pneumatic valve’s high force — see the next section; this is the most common combination in practice.

Integrating Both: Solenoid-Piloted Pneumatic Systems

Often “solenoid valve vs pneumatic valve” isn’t an either/or — it’s a combination. The most common is the solenoid-piloted pneumatic valve: a small solenoid valve acts as the pilot, controlling the air signal that drives the larger pneumatic valve’s high-force output.

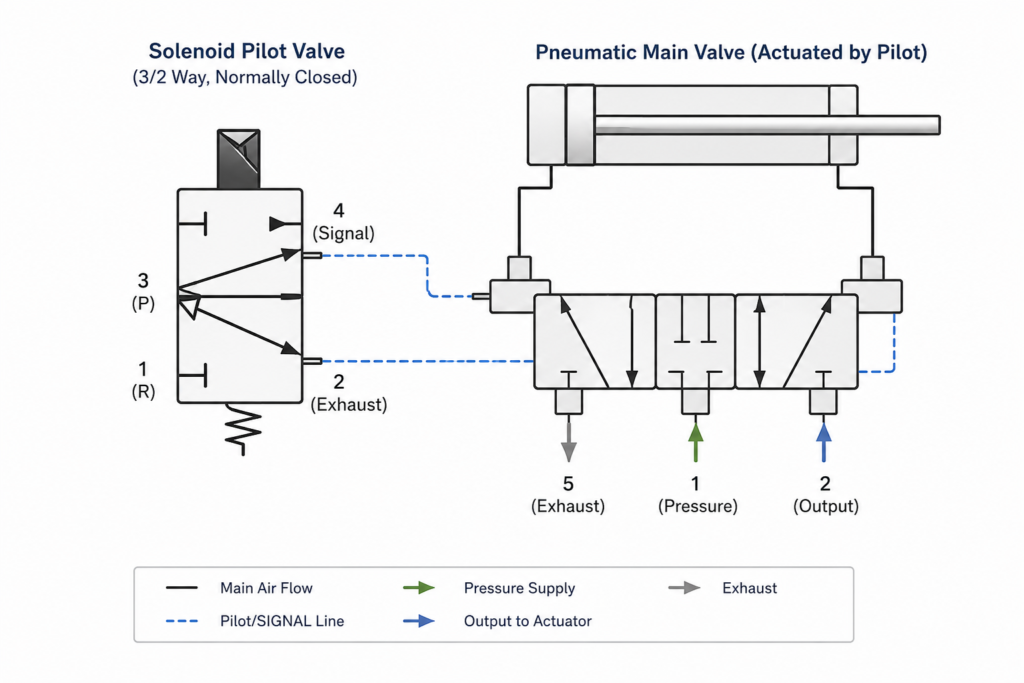

In principle, the small solenoid valve receives the electrical signal and quickly switches the air circuit; the main pneumatic valve uses air pressure to drive the heavy load. This pairs the solenoid valve’s electronic controllability with the pneumatic valve’s high force — electronic precision plus air-driven power, solved in one unit. Many “pneumatic valves” referred to on site are actually this solenoid-piloted construction.

Quick Selection Checklist

Answer these questions against your system to settle the direction:

1. How large is the bore, how high the pressure? Small-to-medium, low pressure → solenoid valve; large bore, high pressure → pneumatic valve.
2. Is there an existing air supply on site? Yes → pneumatic valve viable; no, and a standalone supply doesn’t pay off → solenoid valve.
3. Hazardous / explosion-proof area? Yes → pneumatic valve (inherently explosion-proof), or an explosion-proof-certified solenoid valve.
4. Need high-frequency cycling? Yes → solenoid valve (millisecond response).
5. Need to hold position on power loss? Yes → pneumatic valve (can be designed fail-safe).
6. Need both electronic control and high force? Yes → solenoid-piloted pneumatic integrated solution.

FAQ

Are solenoid valves more expensive than pneumatic valves?
Not necessarily. Small solenoid valves are typically inexpensive, but cost rises sharply at large bore, high pressure, and with explosion-proof certification. A pneumatic valve’s unit price depends on spec, and it also carries the cost of air-supply infrastructure. Overall, a solenoid valve is more economical for small bore; for large bore it comes down to whether you already have an air supply.

How much faster do solenoid valves respond compared to pneumatic valves?
Solenoid valves respond in milliseconds, driving the plunger directly via the coil. Pneumatic valves have to fill and exhaust the cylinder, limited by line length and chamber volume, so they’re generally slightly slower than a direct-acting solenoid valve. In high-frequency cycling the solenoid valve’s advantage is clear.

Can solenoid valves be used with any type of fluid?
A solenoid valve can control liquids or gases, but you must match the body and seal materials to the medium (corrosiveness, temperature, viscosity). Pneumatic valves are mostly used in air circuits, though some handle other media — selection is by medium in the same way. Mixing media blindly will damage seals or jam the spool.

How long is the life of a pneumatic valve?
Pneumatic valves are generally durable; life depends mainly on cycle frequency, air cleanliness (moisture/oil/particulate wears seals), and maintenance. With regular draining, filtering, and seal replacement, service life can reach millions of cycles. Dirty air is the number-one cause of premature pneumatic-valve failure.

Can a pneumatic valve run without a solenoid?
Yes. A pneumatic valve can be purely air-piloted (driven by another air signal) or manually actuated — a solenoid pilot isn’t mandatory. But if your system already has electronic control (a PLC, etc.), using a solenoid pilot valve to convert the electrical signal into an air signal is the most convenient integration path.

Conclusion

The difference between solenoid and pneumatic valves comes down to actuation: solenoid valves use electricity — fast, precise, compact; pneumatic valves use air — high force, stable, inherently explosion-proof. Choose a solenoid valve for small-to-medium bore, high frequency, and where power is available; choose a pneumatic valve for large bore, high pressure, hazardous areas, hold-position needs, or where an air supply already exists; when you need both, use a solenoid-piloted pneumatic system. Keep this main line clear and selection stays on track.

If you’re selecting a solenoid valve and need help matching port count, bore, voltage, and medium, [view our solenoid valve product range] or [contact our team] — we’ll help you get the control valve right in one pass.

How Do Solenoids Work? A Complete Guide to Solenoid Principles, Types, and Applications

How does a solenoid turn an electrical signal into precise mechanical motion? The same principle powers the click of an electric door lock and the precise fuel injection in a car engine. Once you grasp it, you can specify, apply, and troubleshoot solenoids with confidence.

This guide covers the working principle, the main types, common applications, selection criteria, and — importantly — how to tell when one isn’t working. Whether you’re an engineer specifying components or a buyer comparing options, this is your complete reference.

What Is a Solenoid?

A solenoid is an electromechanical device that converts electrical energy into linear mechanical motion. Its construction is remarkably simple: a tightly wound coil of wire surrounding a movable ferromagnetic core called a plunger (or armature).

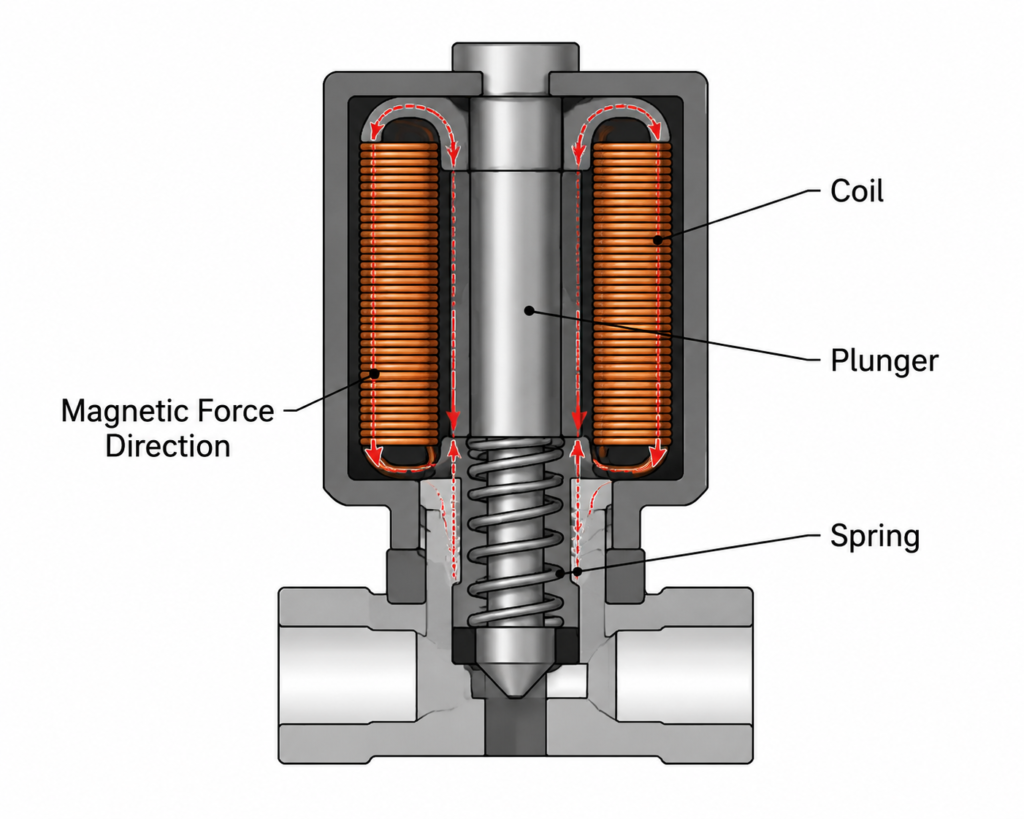

The basic components are:

• Coil — a tightly wound spiral of conductive wire (usually copper) that generates a magnetic field when current passes through it.
• Plunger / armature — a movable iron or steel core that is pulled into the coil in response to the magnetic field.
• Frame — the stationary magnetic housing that completes the magnetic circuit.
• Return spring — pushes the plunger back to its rest position when power is removed.

So what does a solenoid actually do? It takes an electrical signal and turns it into a push, a pull, or a switching action — instantly and reliably. That’s the whole working principle, and the reason it shows up across so many industries.

How Do Solenoids Work? Step by Step

This is the core of it. The working process of a solenoid, from power-on to reset, breaks down into five steps:

1. Current is applied. Voltage is delivered to the coil terminals, and electric current flows through the wound wire.
2. A magnetic field is generated. Following the principles of electromagnetism (Ampère’s law), the current-carrying coil produces a magnetic field along its central axis. The coil effectively becomes an electromagnet.
3. The plunger is magnetized and pulled in. The magnetic field magnetizes the ferromagnetic plunger and pulls it toward the center of the coil — the point of maximum magnetic flux and minimum magnetic reluctance. This linear displacement is the motion that does the actual work.
4. Mechanical action is produced. As the plunger moves, it pushes, pulls, or trips whatever mechanism it’s connected to — opening a valve, engaging a lock, or triggering a starter.
5. Power is removed, and the spring resets. When current stops, the magnetic field collapses. The return spring pushes the plunger back to its resting position, ready for the next cycle.

In high-speed applications like fuel injectors, this on/off cycle can repeat thousands of times per minute — a testament to the speed and repeatability of the solenoid working principle.

Power Supply: How Do Solenoids Get Power?

A common question is how do solenoids get power, and the answer directly affects specification. Solenoids are powered in two ways:

• DC (direct current) — the most common for control applications. A 12V DC solenoid coil is the standard choice in automotive and industrial control panels; 24V DC is also widespread. DC solenoids run quieter, cooler on average, and are easier to control precisely.
• AC (alternating current) — often used where high force and fast response are needed (for example, some industrial valves). AC solenoids can be smaller for a given force, but they run louder and can overheat if the plunger fails to pull in fully.

Voltage choice directly affects performance: undervoltage means weak pull-in force and sluggish or failed operation; overvoltage overheats the coil and shortens its life. Always match the coil voltage to the supply — a 12V coil on a 24V supply will burn out quickly.

Types of Solenoids

Solenoids come in several configurations, each suited to different jobs:

• Linear solenoids produce straight-line push or pull motion — the most common type.
• Rotary solenoids convert electromagnetic force into rotational motion, used in sorters, indexed drives, and valve controls.
• Pull-type vs. push-type — pull solenoids draw the plunger inward (e.g., door locks); push solenoids drive it outward (e.g., eject mechanisms).
• Latching / bi-stable solenoids use a permanent magnet to hold the plunger in position without continuous power— ideal for energy-efficient or fail-safe applications. A brief pulse of current moves it one way; a reversed pulse moves it back.

For solenoid valves specifically, the number of “ways” (ports) defines the flow configuration:

• 2-way — simple on/off, two ports (inlet and outlet).
• 3-way — three ports, used for diverting or mixing flow.
• 4-way — four ports, typically used to control double-acting cylinders.

The “way” count is one of the most important selection dimensions for solenoid valves, and it’s worth a deeper look if you’re specifying one for pneumatics or hydraulics.

Solenoid Valve: The Most Common Application

While solenoids are used in many devices, the solenoid valve is by far the most common application — and likely the reason you’re reading this. A solenoid valve combines a solenoid actuator with a valve body: the solenoid handles the rapid on/off mechanical action, while the valve body controls the flow of liquid or gas through the ports.

So how do solenoid valves work? When the coil energizes, the plunger lifts (or presses) a sealing element — a diaphragm, piston, or poppet — opening or closing the flow path. When it de-energizes, the spring reseats the seal and flow stops. It’s the same fundamental solenoid working principle, just applied to fluid control.

Common Applications of Solenoids

What is the function of a solenoid in the real world? Here’s how the working principle translates across industries:

• Automotive — starter solenoids engage the starter motor; fuel injector solenoids meter fuel; transmission solenoids shift gears. Automotive runs on 12V DC, which is why how do 12V DC solenoid coils work is such a common question.
• Door locks and access control — electric strike and electromagnetic door locks use pull-type solenoids .
• Industrial automation — pneumatic and hydraulic valve banks, relays, contactors, and actuators.
• Irrigation and water control — sprinkler and drip systems use latching or low-power solenoid valves .
• Medical and appliances — from dosing pumps to coffee machines to dental chairs.

The common thread: whenever fast, repeatable, electrically-controlled motion is needed, a solenoid is usually the simplest, most reliable answer.

How to Choose the Right Solenoid

Choosing the right solenoid comes down to matching a few key parameters to your application. Get these right and you’ll avoid most common pitfalls:

1. Voltage (AC vs. DC, and the value) — match the coil voltage to your supply. 12V DC and 24V DC are standard; confirm whether your system is AC or DC before ordering.
2. Stroke length — the distance the plunger must travel. Too short and it won’t engage your mechanism; too long and force drops off.
3. Force — the pull-in force needed at the required stroke. Always leave a 20–30% safety margin.
4. Duty cycle — the ratio of on-time to total cycle time. Continuous-duty solenoids handle near-constant operation; intermittent-duty solenoids are smaller and cheaper but will overheat if held energized too long. Mismatching duty cycle is a leading cause of premature failure.
5. Environmental rating — IP rating, temperature range, and corrosion resistance matter for outdoor or wash-down environments (think irrigation or food processing).

For solenoid valves specifically, also consider: port count (2/3/4-way), orifice size, the fluid being controlled, and whether you need normally-open (NO) or normally-closed (NC) operation.

Common Solenoid Failures and How to Check If a Solenoid Is Working

Most general guides stop here — but this is exactly what technicians and buyers need. Solenoids are simple, but when one fails, you need to know how do you check if a solenoid is working quickly.

Common failure modes

• Burnt coil — overheating (from overvoltage, wrong duty cycle, or a jammed plunger that draws high inrush current) melts the coil winding. Often visible as a burnt smell or discolored coil.
• Stuck or seized plunger — dirt, corrosion, or debris in the frame prevents the plunger from moving freely. The coil may still hum, but no motion occurs.
• Weak or broken return spring — the plunger pulls in but doesn’t reset, so the valve stays stuck open or closed.
• Mechanical overload — the connected load exceeds the solenoid’s force rating, so it pulls in slowly or not at all.

How to check if a solenoid is working

1. Listen and feel. A healthy solenoid gives a distinct, crisp “click” when energized. No click — or a hum without motion — signals trouble.
2. Check coil resistance (ohms). Disconnect power and measure across the terminals with a multimeter. Compare to the spec sheet — an open circuit (infinite resistance) means a burnt coil; a significantly low reading can mean a shorted winding. Anything well off-spec means replace it.
3. Confirm voltage at the coil. When energized, verify the coil receives the correct voltage. Low voltage means weak pull-in.
4. Test the plunger manually. With power off, the plunger should move freely and the spring should return it. Any binding, grinding, or resistance points to a mechanical issue.
5. Check current draw. A solenoid draws higher inrush current on pull-in, then drops to holding current once seated. If current stays high and the plunger doesn’t seat, it’s likely jammed or overloaded.

If the coil checks out but motion is still weak, the problem is almost always mechanical (binding, overload, or low voltage) rather than electrical.

Frequently Asked Questions

What is the working principle of a solenoid?
A solenoid works by passing electric current through a coil to generate a magnetic field that pulls a movable ferromagnetic plunger into the coil, converting electrical energy into linear mechanical motion. When the current stops, a return spring resets the plunger.

What is the function of a solenoid?
The function of a solenoid is to convert an electrical signal into a fast, repeatable mechanical action — a push, pull, or switch — used to actuate valves, locks, starters, injectors, and countless other mechanisms.

How do solenoids get power?
Solenoids are powered by applying voltage across the coil terminals. Most run on DC (commonly 12V or 24V DC); some industrial types use AC. The coil voltage must match the supply to avoid weak operation (undervoltage) or burnout (overvoltage).

How do I know if my solenoid valve is working?
Listen for a crisp click when energized, measure coil resistance with a multimeter and compare to spec, confirm correct voltage at the coil, and verify the plunger moves freely by hand. No click, infinite resistance, or a jammed plunger all point to a fault.

What’s the difference between a solenoid and a solenoid valve?
A solenoid is the electromagnetic actuator (coil plus plunger) that creates motion. A solenoid valve is a complete product that uses a solenoid to open and close a fluid path. Put simply: the solenoid is the motor; the solenoid valve is the motor plus the plumbing.

Conclusion

Understanding how solenoids work comes down to one chain: current → magnetic field → plunger motion → mechanical work. From that single principle springs an enormous range of applications — and the better you grasp the working principle, the better you’ll specify, apply, and troubleshoot them.
